Rolling Equipment

Rolling Equipment

It is a facility that rolls coated material to a certain thickness. This requires the technology of precisely controlling the gap between main rolls and applying regular nip pressure to the entire electrodes.
  • Specifications can be customized to tailor your requirements, and additional options can be added

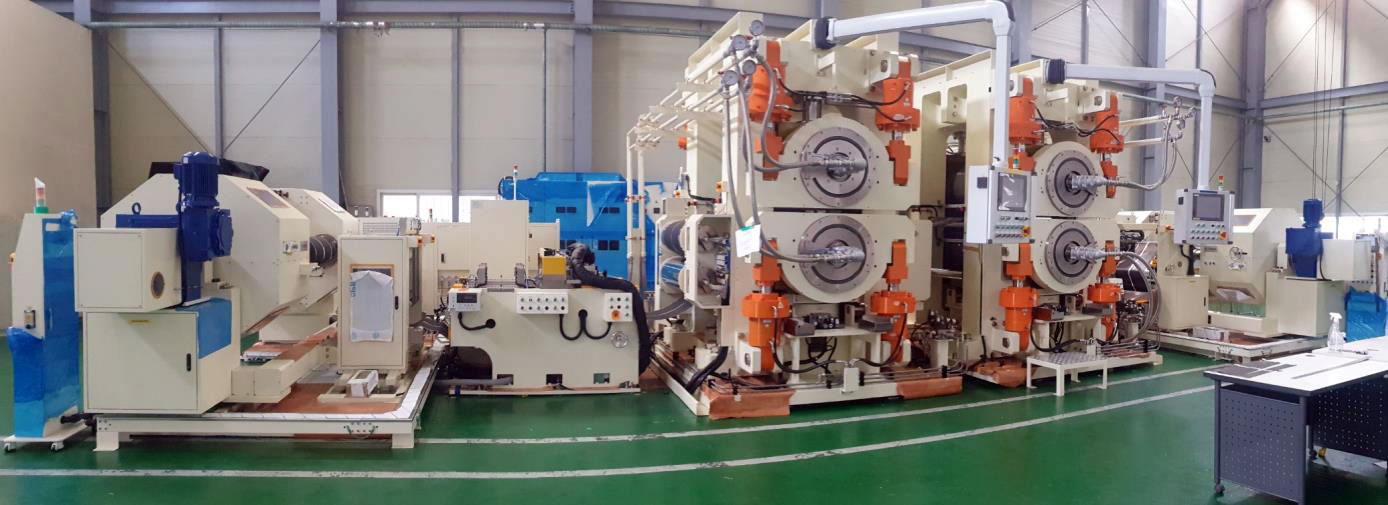

ROLL PRESS

ROLL PRESS
Roll Press can be up to 1000mm in width, and the option desired by the customer can be applied.
Division General Specifications
Sheet material Coated secondary battery cathode/anode
Sheet Width 700~1000mm
Speed Max. 120M/min(Nor. 100M/min)
Unwinder Dia Max. 1000mm
Rewinder Dia Max. 1000 mm
Prevention of foreign substances Magnetic Bar, Suction
Rolling Unit Static Pressure/Counter Pressure
option Auto Thickness Gauge

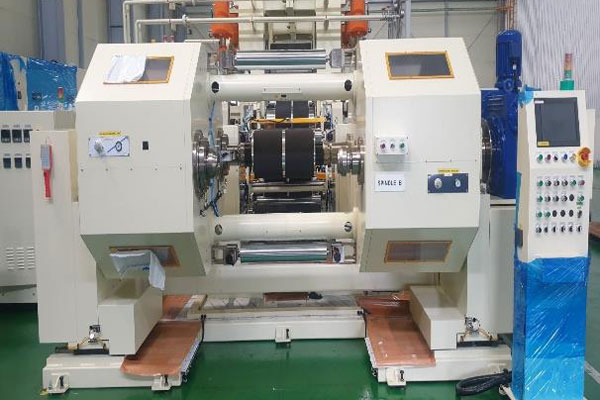

Winder/Unwinder
  • 2-axis turret unit + automatic replacement by applying auto splicing
  • VISION SYSTEM can be applied to check for defects
  • Application of precision E.P.C to comply with the prescribed position of the film
  • Frame design to alleviate vibration and shock

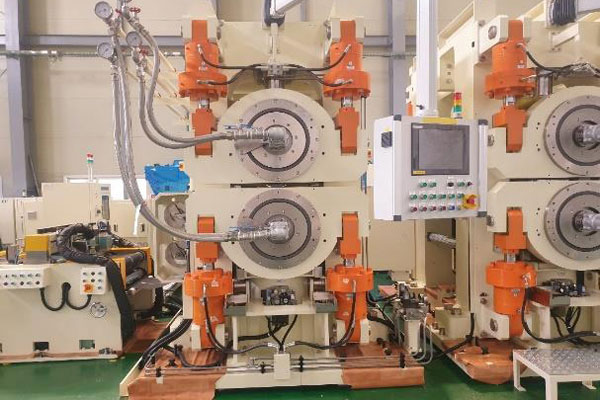

Roll Press
  • Temperature control through hot water & hot oil system
  • Application of PRE-HEATING ROLL (OPTION)
  • OPTION can be applied for side wrinkle relief
  • HEATING & COOLING Desired control possible
  • Installation of bogie for replacement of ROLL

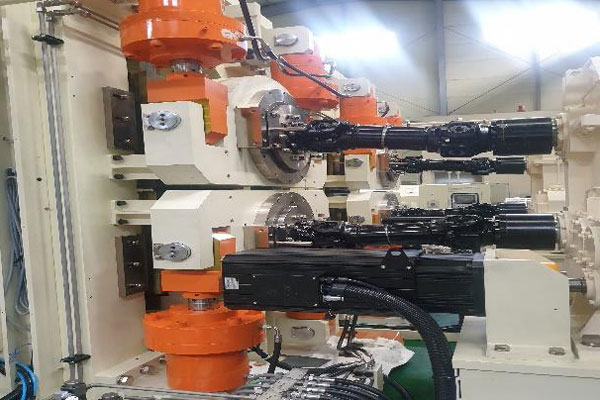

Roll Drive
  • Up/down precise speed control possible
