Solar Back Sheet Line
FILM COATING LINE
PVPE PLANT

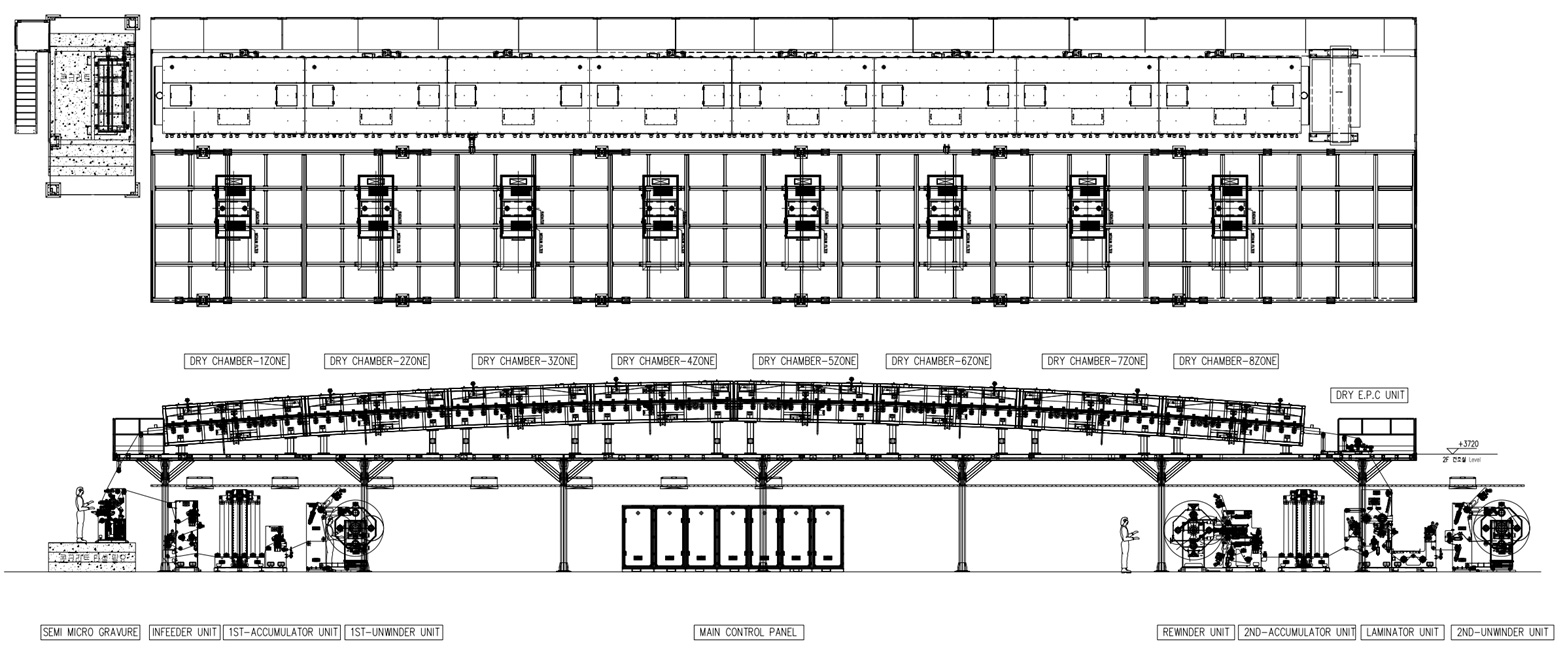

FILM COATING LINE
Manufacture coating equipment that forms a coating film on a back sheet dedicated to solar power modules.
Coating types: Micro gravure, slot die, comma, bar, etc.
Drying methods: UV, hot air drying, NIR heater, etc.
Division
General Specifications
Sheet material
PET
Sheet Width
Max. 2150mm
Speed
Max. 50M/min
Coating Type
Micro Gravure Coating Type
Dry Heat Source
Steam, Thermal Oil, Elec’ Heater
Option
Thickness Gauge / Vision Unit

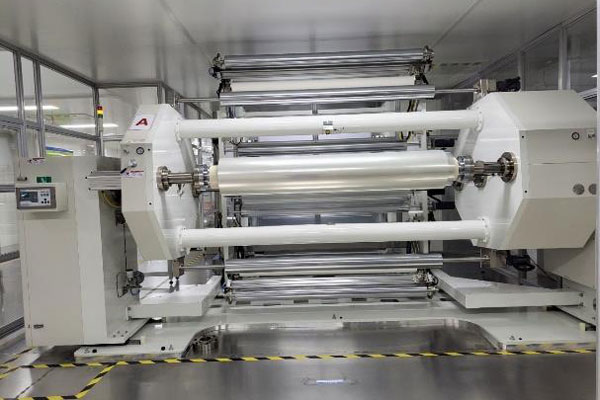

Winder/Unwinder
2-axis turret unit + automatic replacement by applying auto splicing
Application of precision E.P.C to comply with the prescribed position of the film

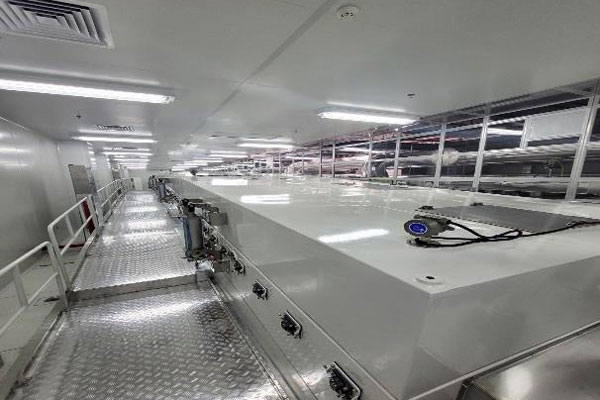

Dryer
Precise temperature control possible
Installation of a measuring instrument for gas concentration measurement
Explosion-proof function for explosion prevention (OPTION)
