Slitting Equipment

Slitting Equipment

We provide a precise and accurate slitting environment with abundant know-hows on various materials.

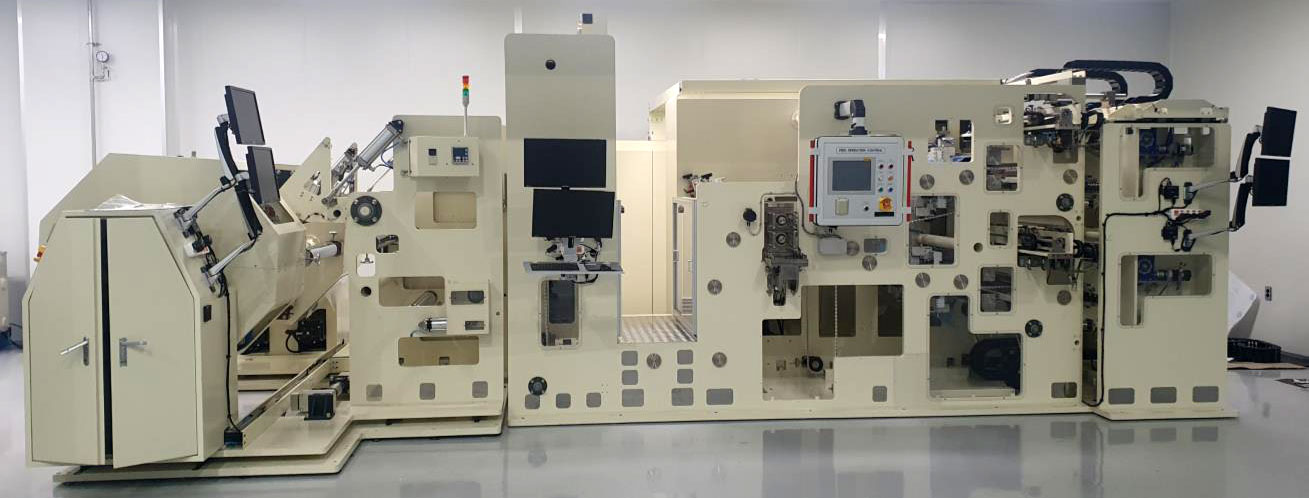

Secondary battery SLITTING MACHINE

Secondary battery Slitting Machine
The maximum width of the anode/cathode slitter is 1000mm, and the option desired by the customer can be applied.
Division General Specifications
Sheet material LIB Anode/Cathode
Sheet Width 700~1000mm
Speed Max. 120M/min(Nor. 100M/min)
Unwinder Dia Max. 900mm
Rewinder Dia Max. 600 mm
Prevention of foreign substances Magnetic Bar, Suction
Knife Cartridge type knife unit
option Vision Inspection + Auto Label

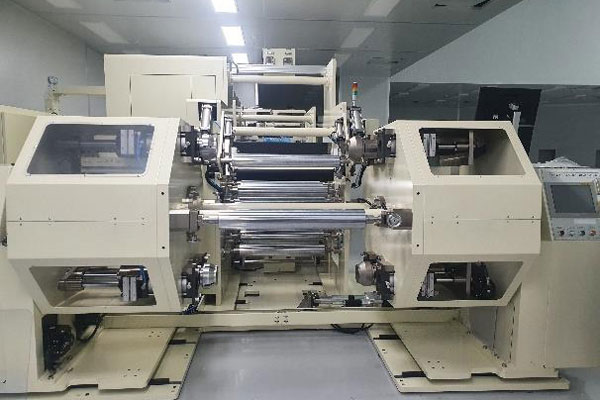

Unwinder
  • 2-axis turret unit + automatic replacement by applying auto splicing
  • Application of precision E.P.C to comply with the prescribed position of the film
  • Frame design to alleviate vibration and shock

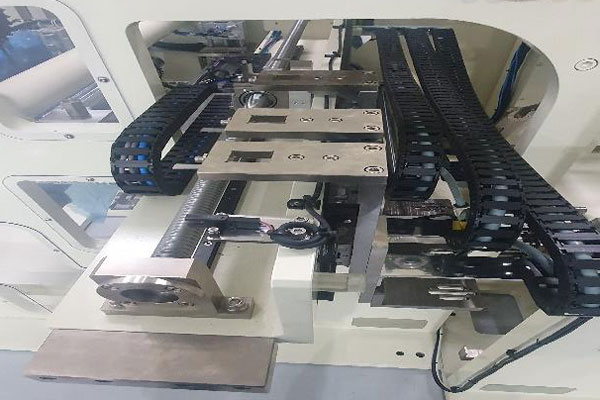

Auto Label
  • VISION SYSTEM that can check defects in real time
  • Installation of AUTO LABEL UNIT to check defective parts
  • Cartridge type design for easy replacement

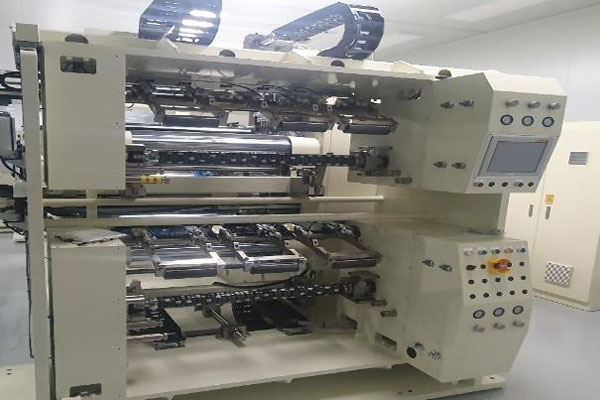

Winder
  • Upper/lower winder unit of FS type
  • Application of TOUCH ROLL structure with automatic pressure adjustment
