Coating Equipment

Coating Equipment

We produce coating equipment with a variety of coating and drying procedures for various materials.
  • Applied materials: Electrodes/separators/optical films/deco films for secondary batteries
  • Coating types: Micro gravure, slot die, comma, bar, etc.
  • Drying methods: UV, hot air drying, NIR heater, etc.

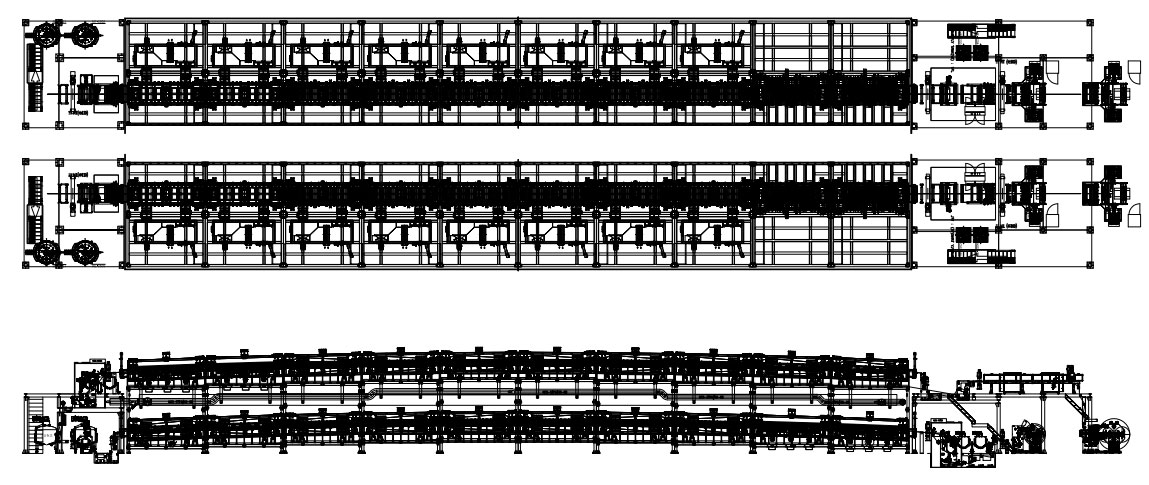

CATHODE/ANODE COATER

CATHODE/ANODE COATER

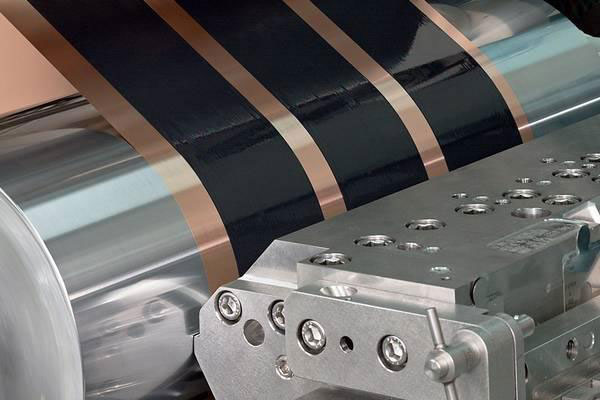

The anode/cathode coater can be up to 1200mm wide and can be coated in the pattern desired by the customer.
Division General Specifications
Sheet material LIB Anode/Cathode
Sheet Width Max. 1300mm
Speed Max. 100M/min
Coating Type Slot die, continuous double sided
Dry Heat Source Steam, Thermal Oil, Elec’ Heater
Option Thickness Gauge / Vision Unit
Winder/Unwinder
  • 2-axis turret unit + automatic replacement by applying auto splicing
  • Application of precision E.P.C to comply with the prescribed position of the film
Coater
  • Sequential double-sided coating possible
  • Stable high-speed coating possible
  • Wide application (Max 1200MM)
Dryer
  • Precise temperature control possible
  • Installation of a measuring instrument for gas concentration measurement
  • Explosion-proof function for explosion prevention (OPTION)

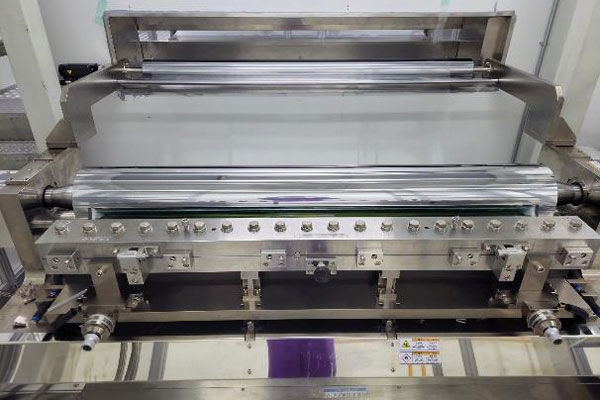

  • Coater

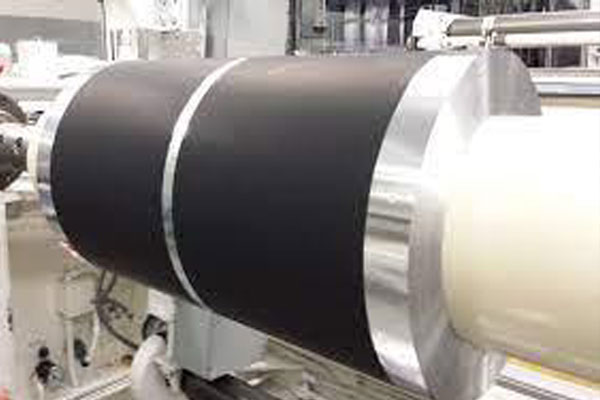

  • Final Product
