Slitting Equipment

We provide a precise and accurate slitting environment with abundant know-hows on various materials.

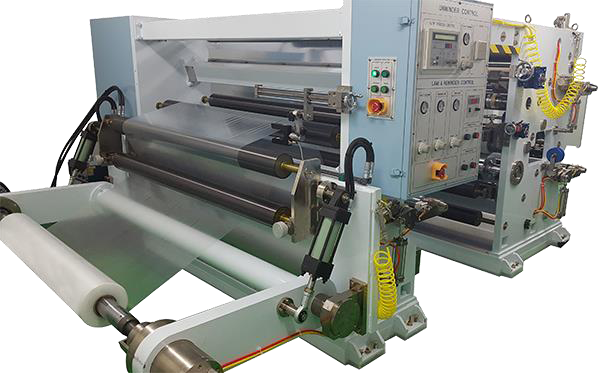

FILM SLITTING MACHINE

FILM Slitting Machine
Division General Specifications
Sheet material PET FILM, PAPER, OPP, CPP
Sheet thickness 1.5~300 μm
Sheet Width Min. 1000 / Max. 1850
Speed Max. 400M/min (Nor. 350M/min)
Unwinder Dia Max. 1200mm
Rewinder Dia Max. 500
Cutting Type Ring Knife Edge Slitting System

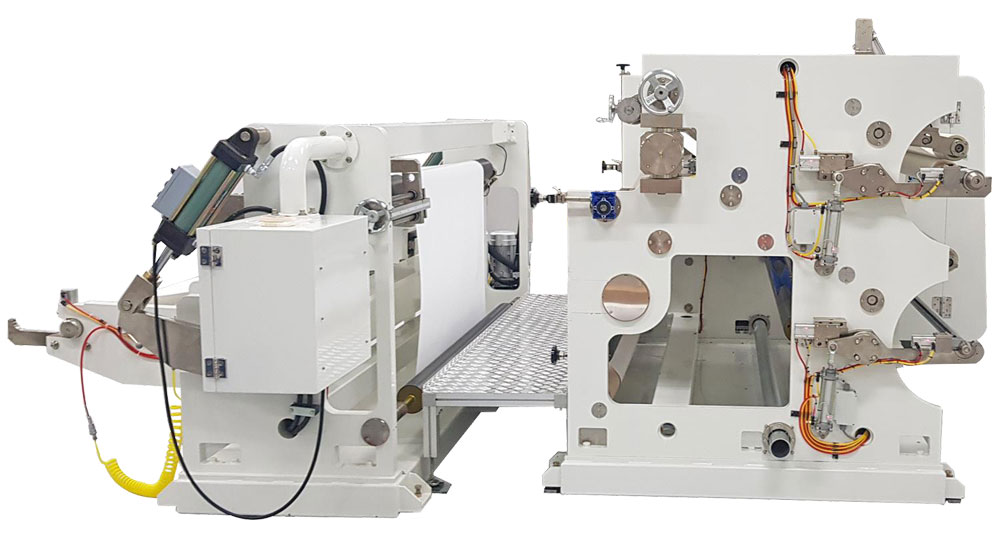

FILM SLITTING MACHINE

FILM Slitting Machine
Division General Specifications
Sheet material Adhesive tape for electrical and electronic parts,
PLASTIC FILM, PET + ADHESIVE + PET LAMINATED FILM
Sheet thickness 20~100μm
Sheet Width Min. 1000mm/ Max. 1300mm
Speed Max. 100M/min (Nor. 80M/min)
Unwinder Dia Max. 800mm
Rewinder Dia Max. 600
Cutting Type LAZOR & SHEAR KNIFE SLITTING TYPE
