Coating Equipment

Coating Equipment

We produce coating equipment with a variety of coating and drying procedures for various materials.
  • Applied materials: Electrodes/separators/optical films/deco films for secondary batteries
  • Coating types: Micro gravure, slot die, comma, bar, etc.
  • Drying methods: UV, hot air drying, NIR heater, etc.

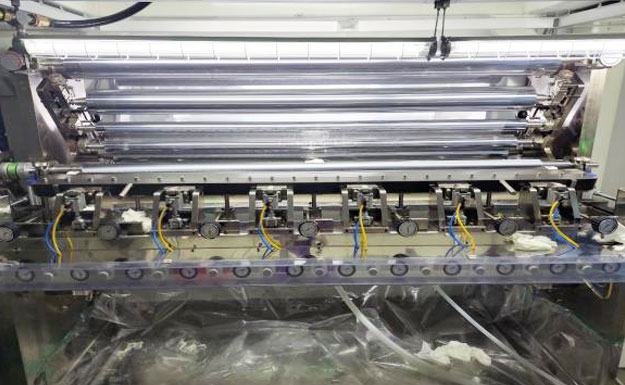

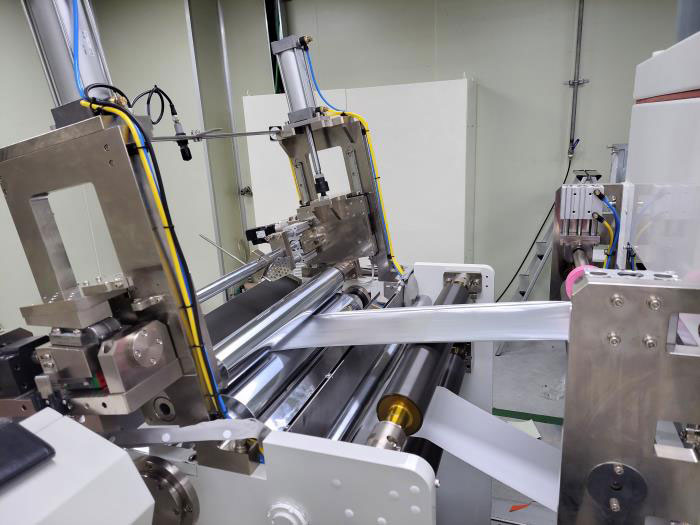

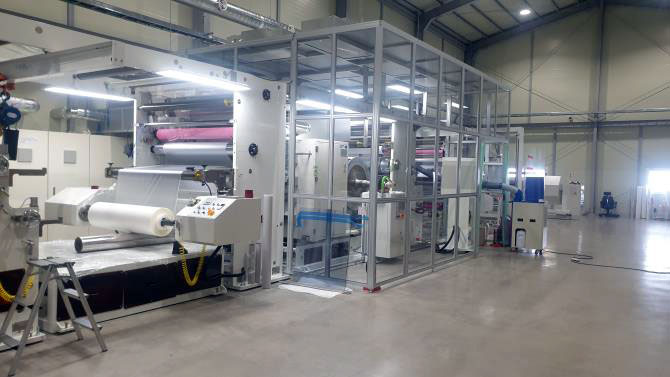

FILM COATER

FILM COATER
Division General Specifications
Sheet material PET, PVC, PAPER Film
Sheet Width Max. 1600mm
Speed Max. 60M/min (Nor. 40M/min)
Coating Type Gravure
Dry Heat Source UV Lamp
Option

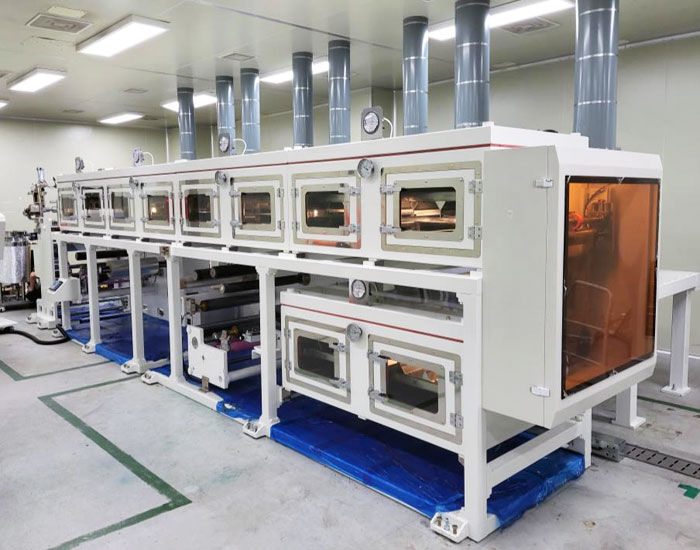

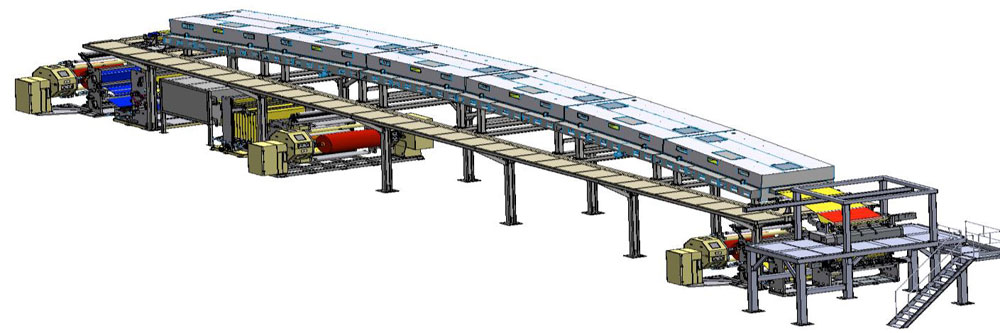

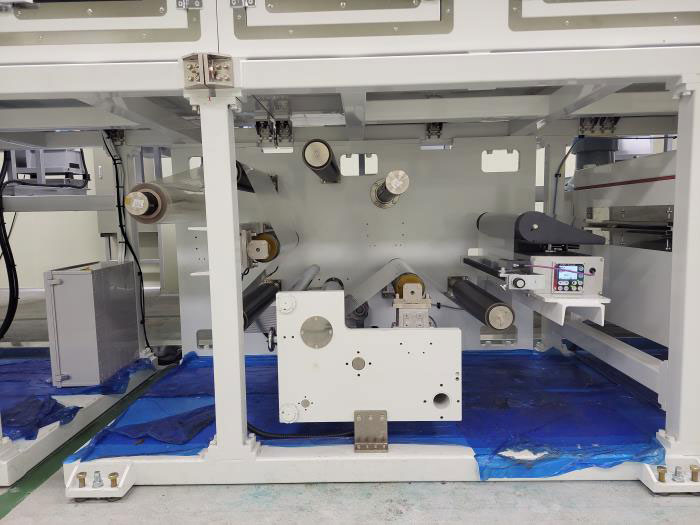

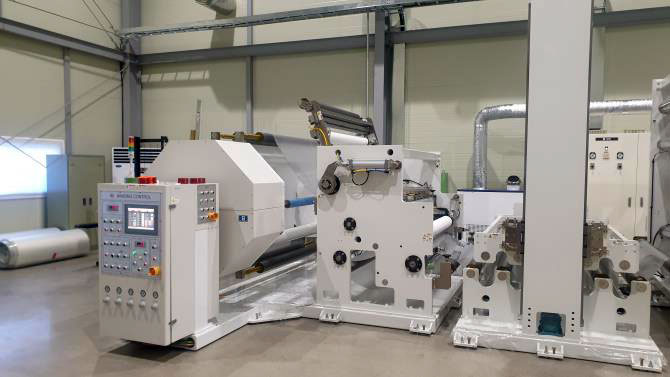

FILM COATER

FILM COATER
Division General Specifications
Sheet material PET, PP
Sheet Width 500mm
Speed Max. 5M/min
Coating Type Comma
Dry Heat Source Elec’ Heater
Option Mixing Tank

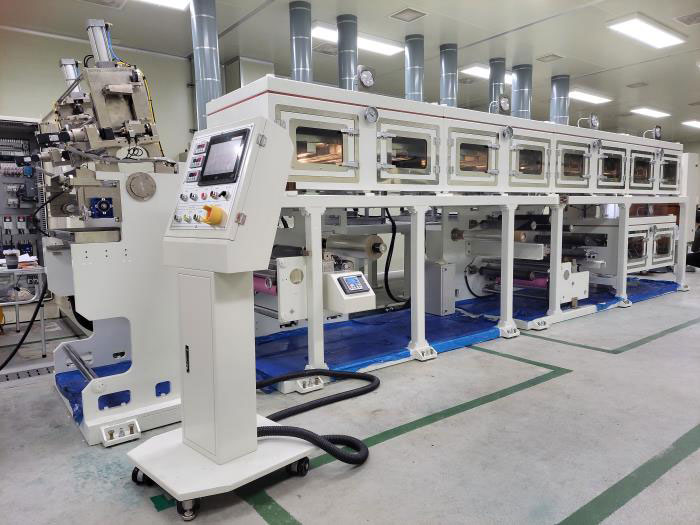

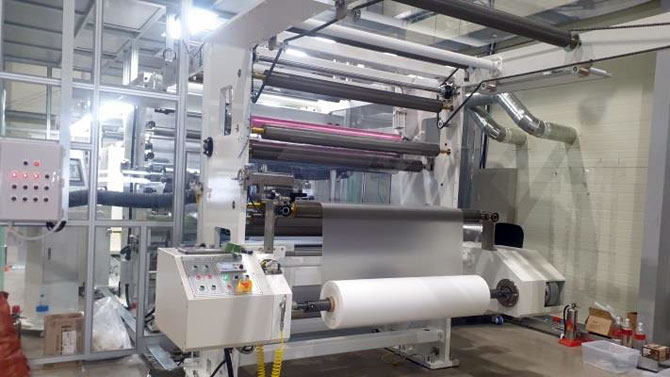

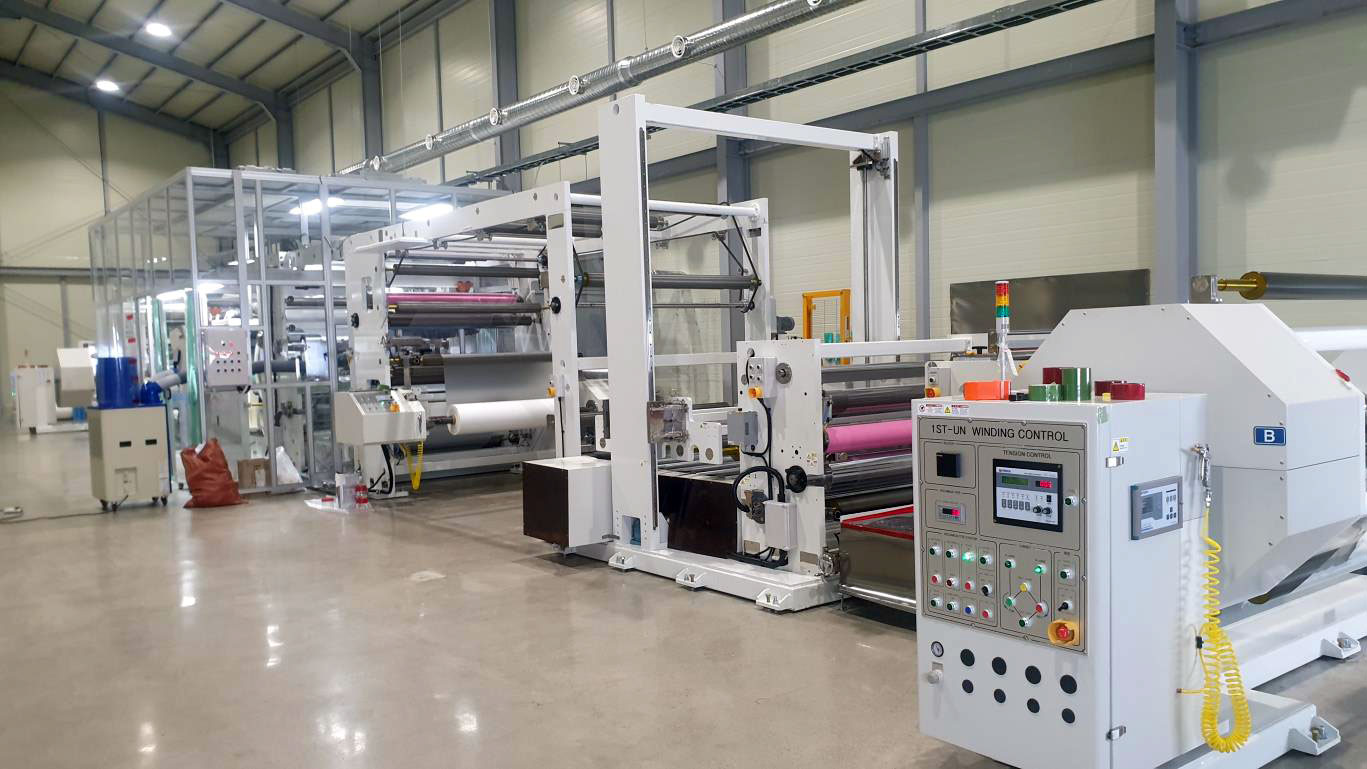

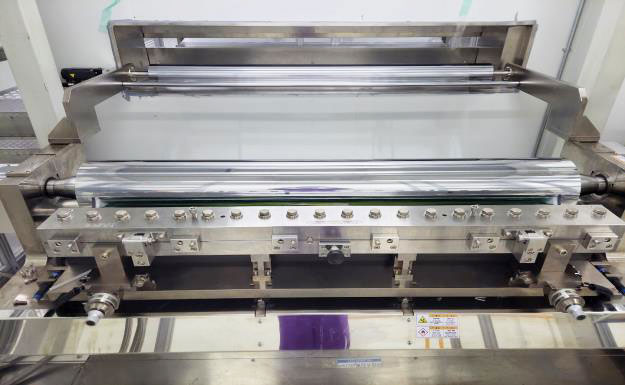

FILM COATER

FILM COATER
Division General Specifications
Sheet material High-gloss optics PET
Sheet Width Max. 1500mm
Speed Max. 60M/min
Coating Type Slot Die, Micro Gravure
Dry Heat Source Steam, Thermal Oil, Elec’ Heater
Option Thickness Gauge/ Vision Unit
