Coating Equipment

Coating Equipment

We produce coating equipment with a variety of coating and drying procedures for various materials.
  • Applied materials: Electrodes/separators/optical films/deco films for secondary batteries
  • Coating types: Micro gravure, slot die, comma, bar, etc.
  • Drying methods: UV, hot air drying, NIR heater, etc.

SEPARATOR COATER

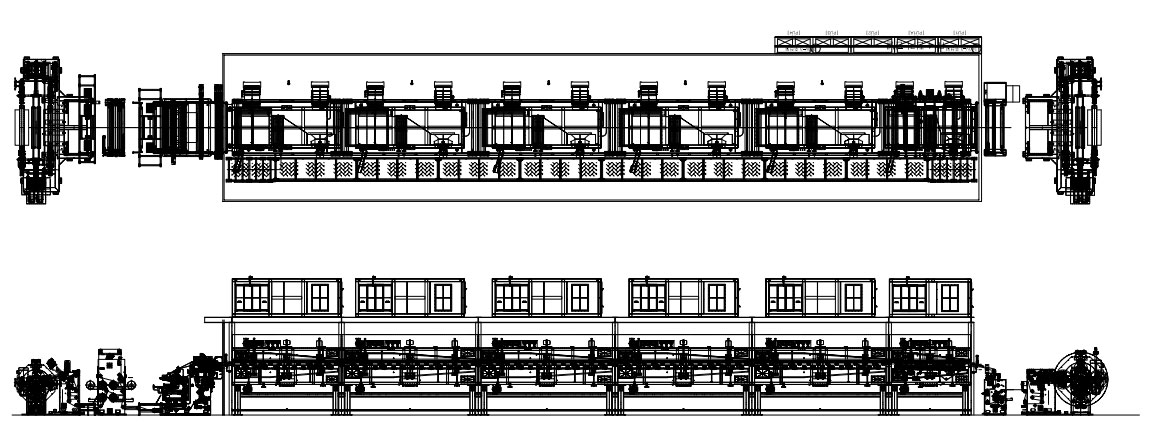

SEPARATOR COATER
The ceramic separator coating machine can apply the desired material to the produced separator Web.
(Aramid Meta/Aramid Para/PVDF/Ceramic)
Division General Specifications
Sheet material LIB Separator
(Ceramic/PVDF/Aramid)
Sheet Width Max. 1350mm
Speed Max. 200M/min
Coating Type Wire Bar Coater, Micro Gravure, Chamber Doctor Gravure, Slot Die
Dry Heat Source Steam, Thermal Oil, Elec’ Heater
Option Thickness Gauge / Vision Unit

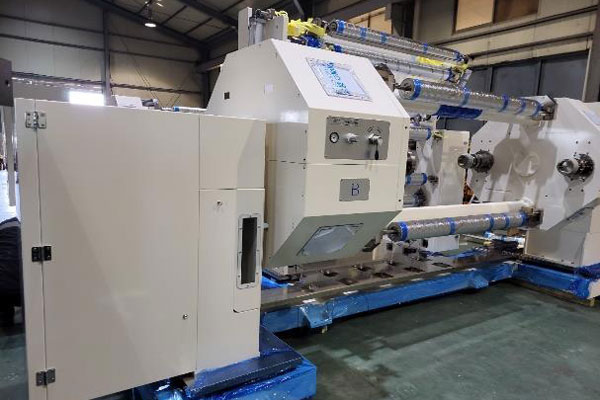

Winder/Unwinder
  • 2-axis turret unit + automatic replacement by applying auto splicing
  • Application of precision E.P.C to comply with the prescribed position of the film

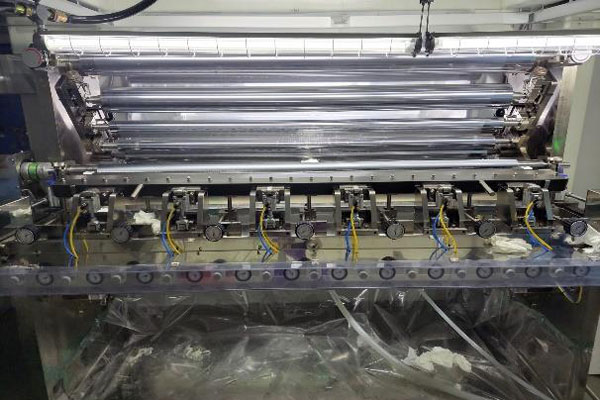

Coater
  • Sequential double-sided coating possible
  • Stable high-speed coating possible

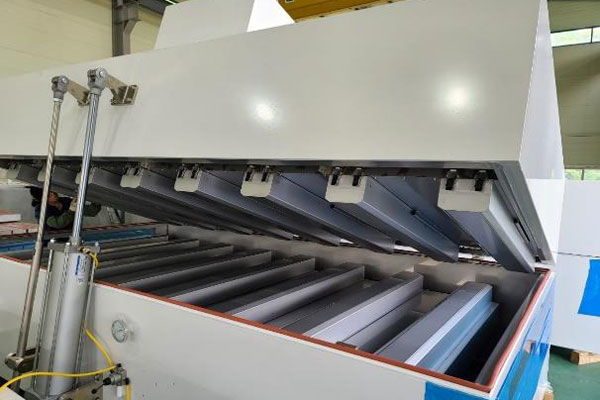

Dryer
  • Chamber Opening Using Air Cylinder
  • Maintenance of internal cleanliness by using SUS grave
  • Application of Floating Nozzle that enables simultaneous coating on both sides

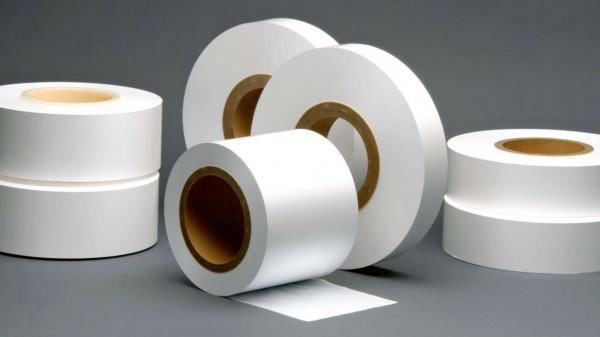

Final Product (Separator Coating product) Final Product (Separator Coating product)
